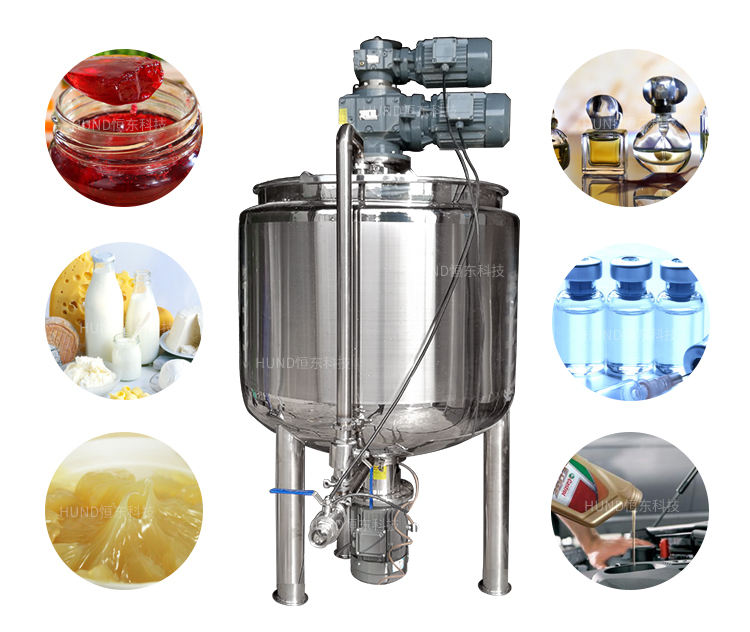

It is widely used in dairy industry, food industry, chemical industry, beverage and other industrial sectors, as heating, cooling, heat preservation, anti-corrosive, anti-corrosive, strong production capacity, Cooling, insulation, sterilization treatment or storage of slurry must be stainless steel mixing tanks, especially for cosmetic cream, toothpaste production line is the necessary equipment.
Material: SS304 / 316L;
Capacity: 50-5000L (customized is accepted);
Configuration with agitator and/or homogenizer;

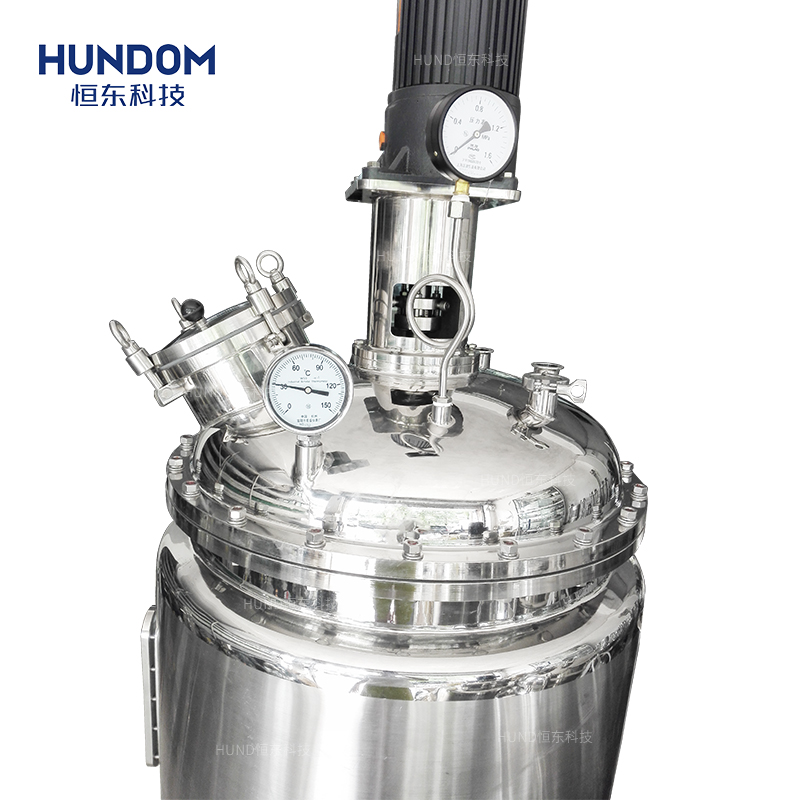

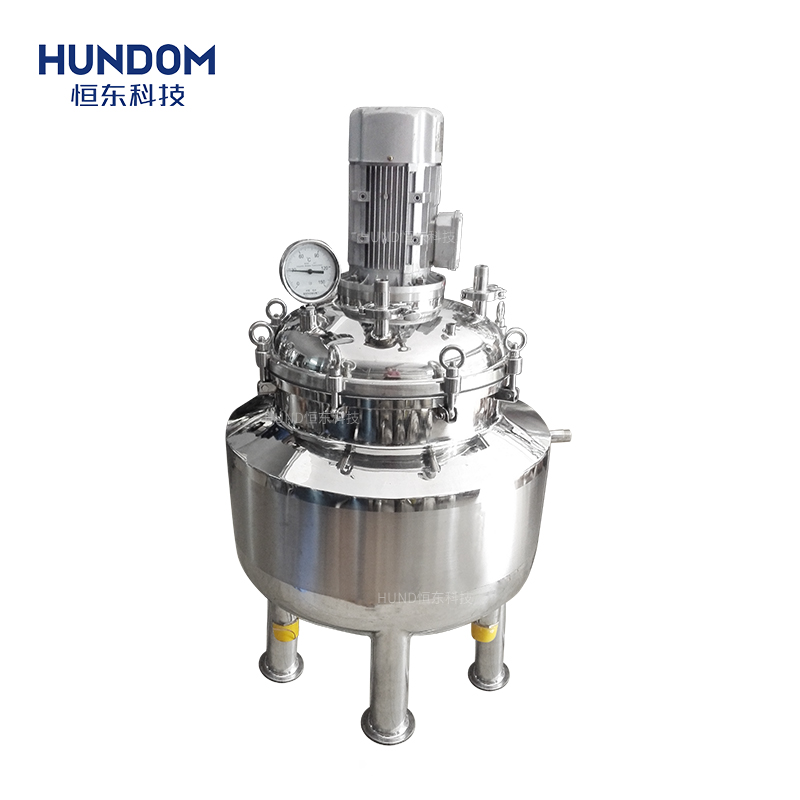

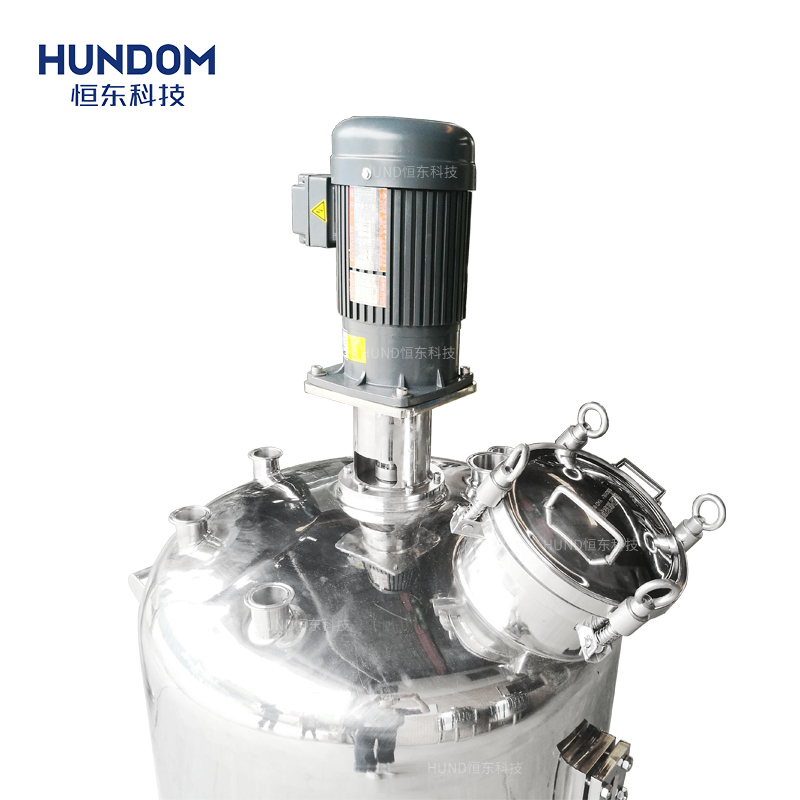

Jacket: single layer, double jacket, three-layer;
Thickness: 2mm, 3mm, 4mm, 5mm, 6mm, 8mm etc. (design according to pressure);
Head: open cover, seal with manhole/handhole etc.;
Shape: cylinder or cone, conical /flat/elliptical bottom with discharge;
Heat Method: steam, electricity;
| Capacity | Heating power (KW) | Inner diameter(mm) | Jacket diameter (mm) | Speed(rpm) | power(KW) |
|---|---|---|---|---|---|
| HD-50L | 4*2 | 400 | 600 | 23-600/2800 | 0.75kw/2.2kw |
| HD-100L | 6*2 | 500 | 700 | 23-600/2800 | 1.1kw/3.0kw |
| HD-300L | 6*4 | 800 | 1000 | 23-600/2800 | 2.2kw/4.0kw |
| HD-500L | 9*4 | 900 | 1100 | 23-600/2800 | 3.0kw/7.5kw |
| HD-1000L | 12*4 | 1200 | 1400 | 23-600/2800 | 4.0kw/11kw |
| HD-2000L | 15*5 | 1400 | 1600 | 23-600/2800 | 4.0kw/22kw |
| HD-3000L | 15*6 | 1600 | 1800 | 23-600/2800 | 5.5kw/30kw |

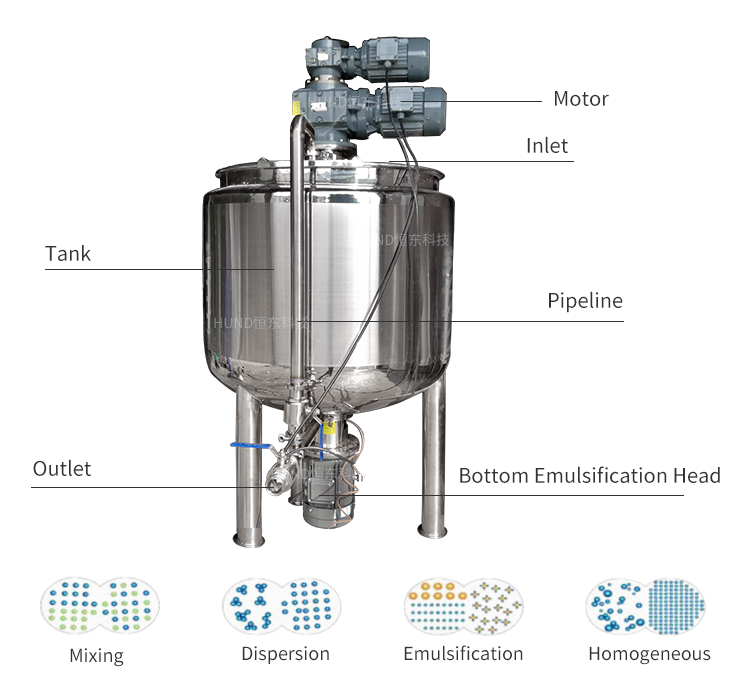

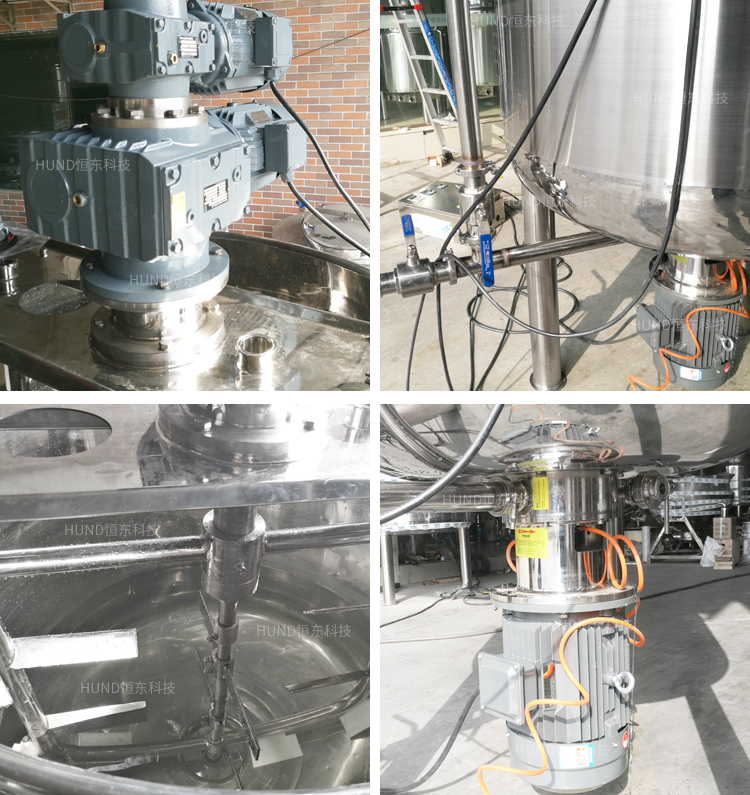

The equipment is a liquid storage containers, composed of reducer, stirring paddle and the material valve, disc thermometer and other components.
The inner layer: adapts stainless steel plate SS304 or 316L material, and the surface mirror polishing.
The jacket: made of SS304 steel, spiral jacket device, cold water from the bottom up without pressure, to achieve the purpose of the best heating and cooling.
The external insulation layer: the environmental polyurethane foam casting/ perlite particles, maintaining the temperature difference with the outside, to the effect of insulation.

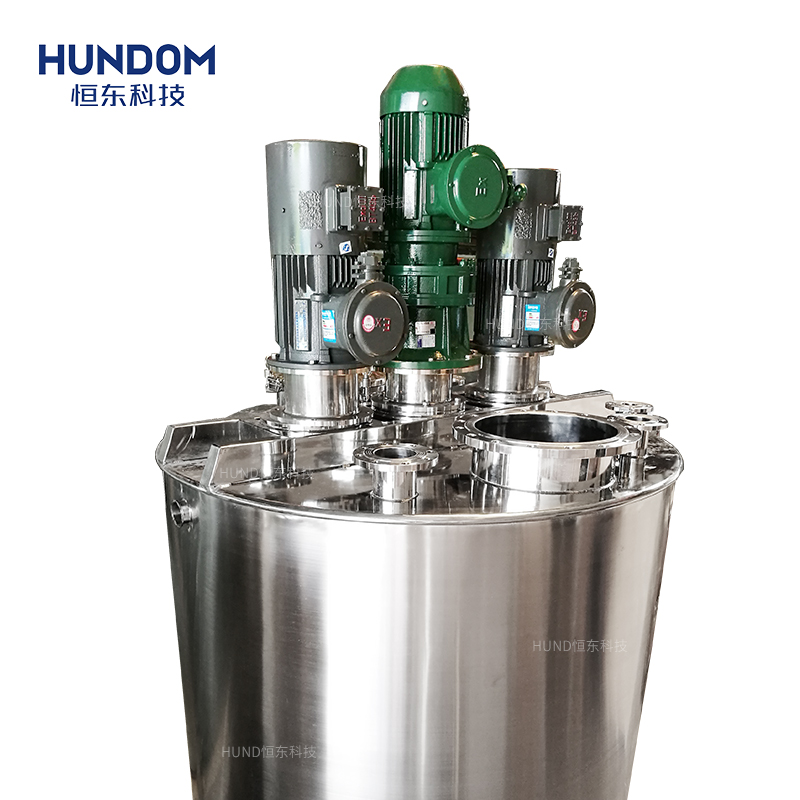

Reducer output shaft connected with the stirring paddle, the use of looper connection, easy disassemble and cleaning.

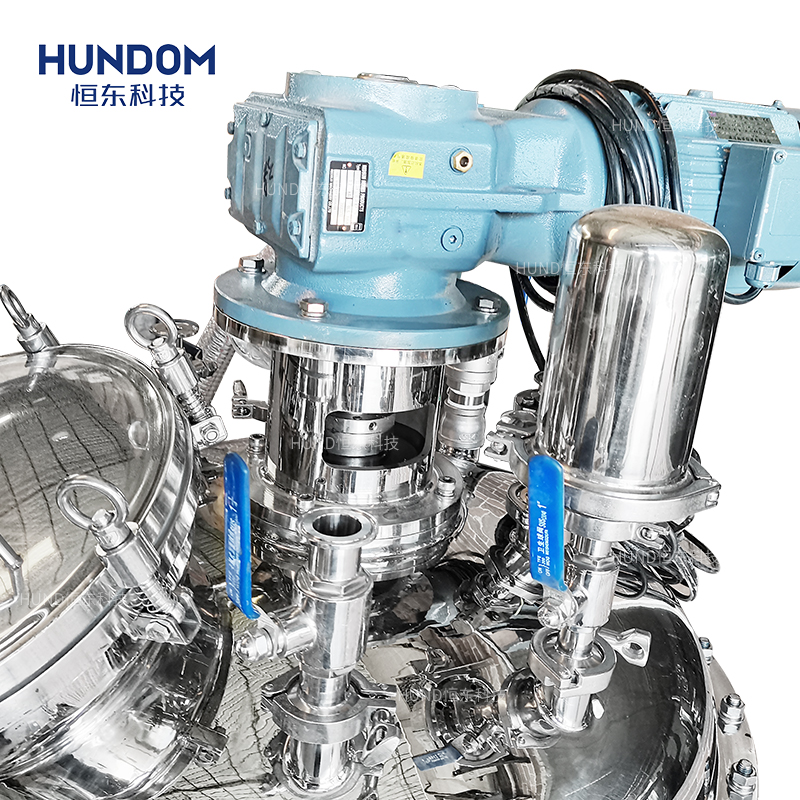

Sterile respirator, sterile sampling port, manhole/cover, inlet and outlet, thermometer, CIP cleaning spray balls, Liquid level gauge, ladder, (Other special customized requirements from customers are acceptable.)

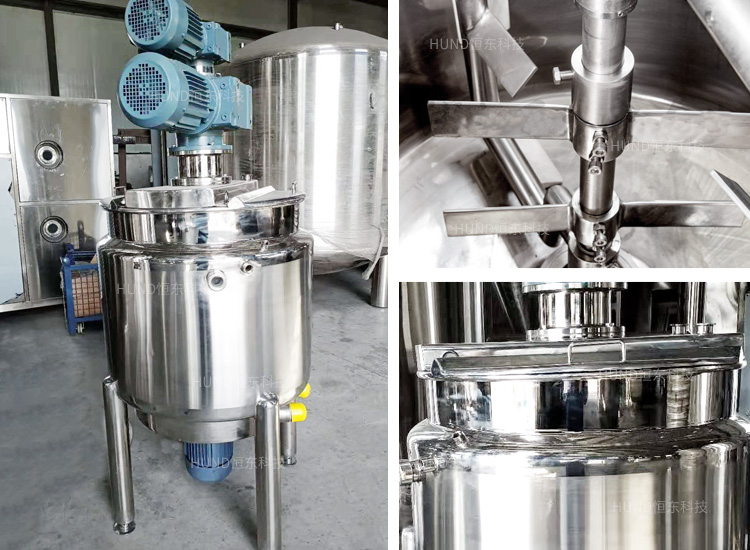

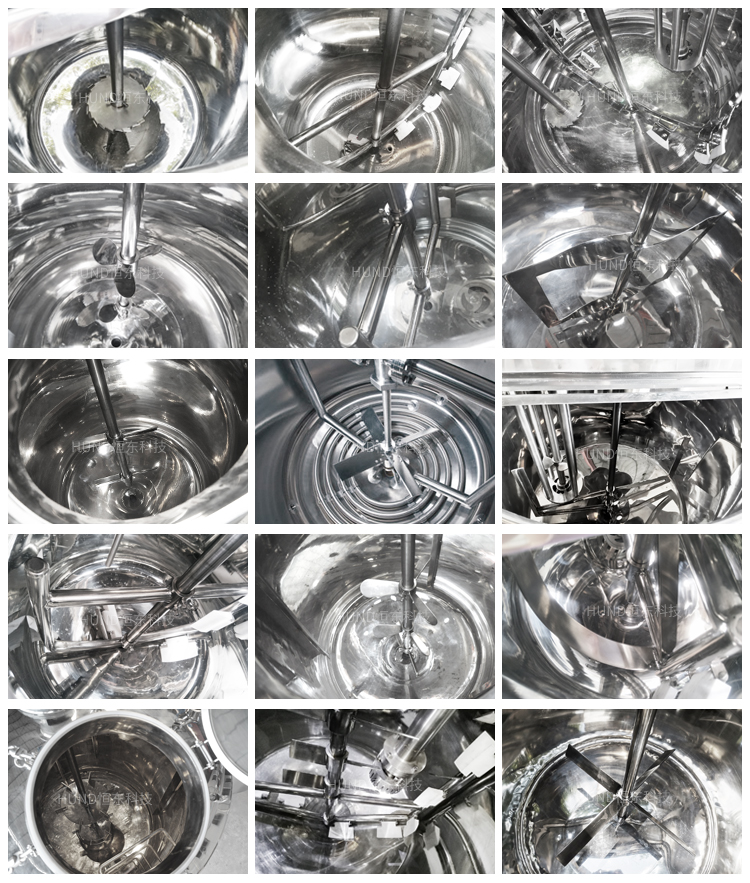

Mixing speed rpm and impeller type can be customized according to customers' request. Such as:

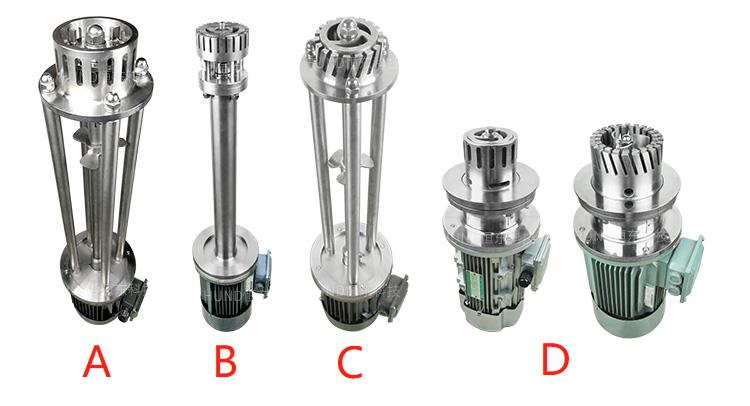

Type A: suitable for materials that are easy to mix and have no requirement for fineness.
Type B: applied to vacuum/pressure tank, mechanical seal is installed on the shaft to prevent liquid/gas leakage.
Type C: more suitable for materials that are not easy to mix and have requirement for fineness.
Type D: installed at the bottom of the tank and is usually used with overhead mixer together.
One-direction mixer (one motor)
For materials with good fluidity and low viscosity, common one-directional mixer is enough.

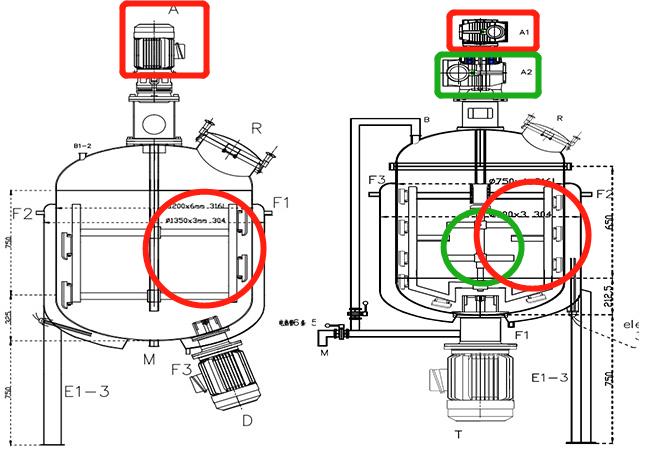

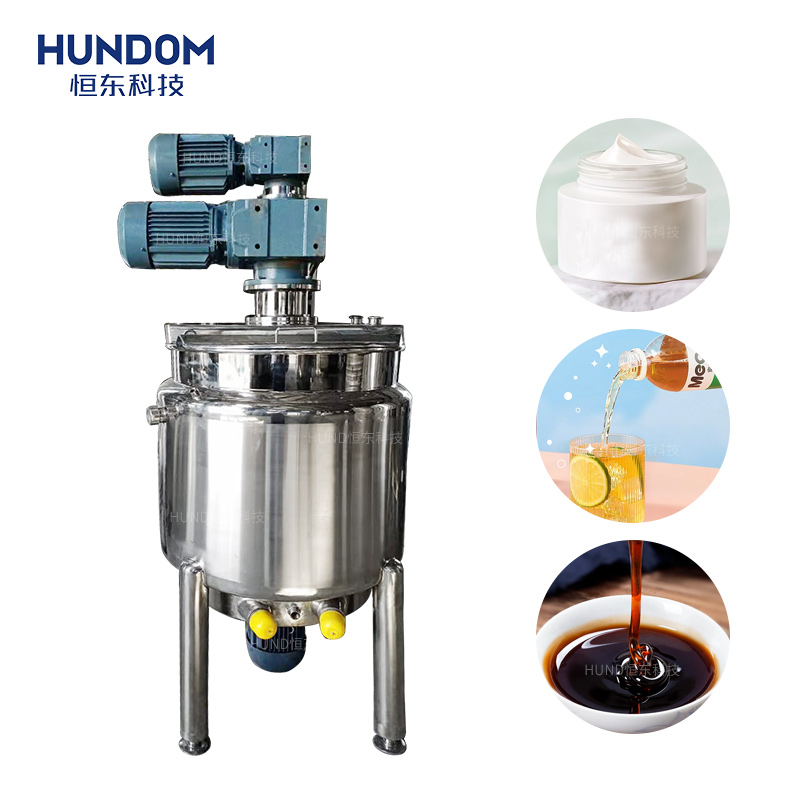

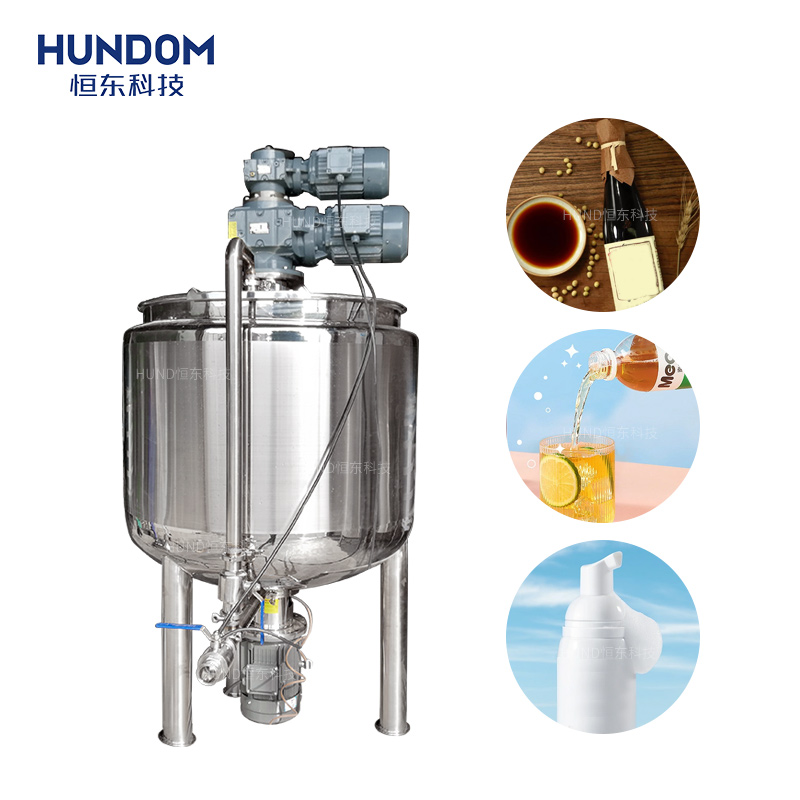

Coaxial opposite direction mixers (two motors)
The mixing effect is super good, especially for materials like ointment, toothpaste, cream, which are thick with high viscosity.
